Boat Pedestal and Mounting Options

Surface Mount (Model 510-1100-S)

Mount any STIDD seat on an existing box or molded structure at the helm with the 510-1100-S surface mount pedestal. Provides a 9 inch fixed seat height for Series 500, 500N, or 1200 seats. Available in matching powdercoat or chrome finish. Ships with a matching deckplate. Accepts manual or power fore/aft equipped seats.

• View the technical drawing for this product (1200W 9″ Height)

Direct Couple Adapter (Model 570-1-350)

The 570-1-350 direct couple adapter provides a static 6 inch fixed seat height for Series 500, 500N, and 1200 seats. No fore/aft adjustment. Finished in matching powdercoat.

• View technical drawing for this product
• View technical drawing (w/ 500N Seat)
• View technical drawing (1200 5″ Height)

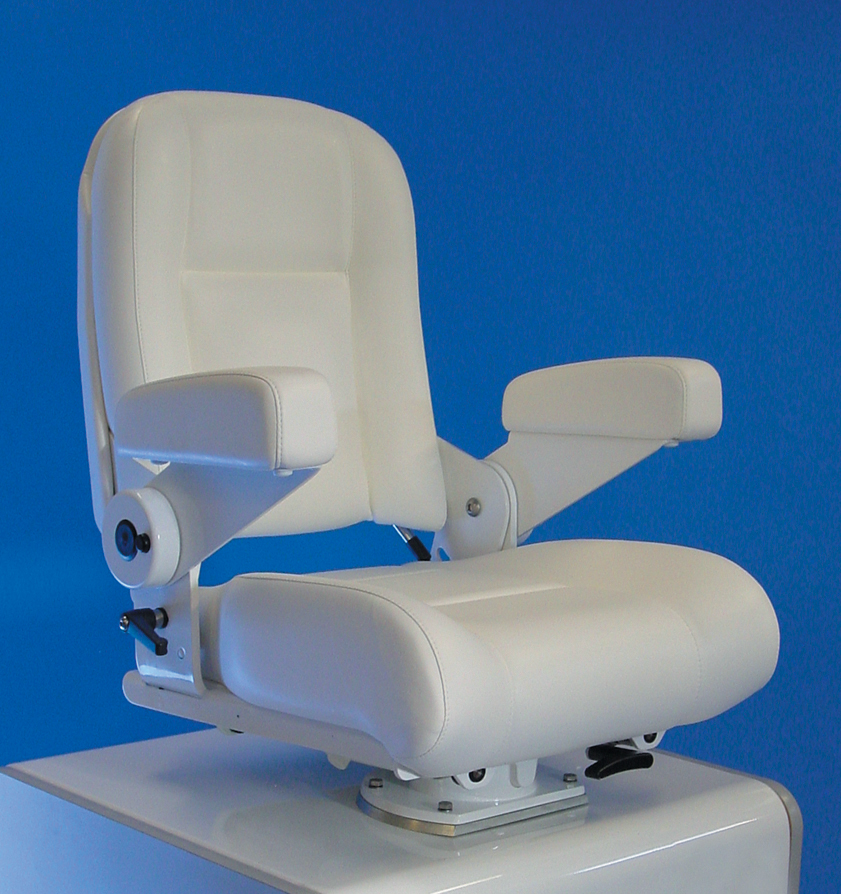

FA Series

The STIDD FA Series has been designed for small to mid-sized boats where seats are installed atop storage cabinets and swivel is not required.
This model features a low profile fixed 7-inch seat height with 7-inches of fore/aft travel.
Travel is adjusted by releasing the easy-to-reach paddle at the front of the seat.

For installation flexibility and maximum comfort, the leading edge of the pedestal has been squared off to allow the seat to be positioned closer to the edge of the box if necessary.

Powdercoat finish only. No swivel.
Available for 500N, 500, 500W and 1200 models

Deck or Box Penetrating Pedestals

For layouts requiring extreme ranges of seat to table height adjustment, our Deck Penetrating Pedestals offer the perfect solution. Many Lo-Hi seat seat and table height ranges are available, so please contact the factory with your specific needs.
Available in deluxe chrome or matching powdercoat finishes, in manual or power configurations.

Download the catalog page for Deck Penetrating Pedestals

9 Inch Base Telescoping Pedestals for Series 500 & 500N

Replacing existing seats with new STIDD seats? Consider our optional 9-inch base diameter telescoping pedestals. With a universal 3-bolt mounting pattern these bases mate with most 9-inch deck plates* for easy, economical do-it-yourself installation. Available in chrome & stainless or powder coat finishes in manual or power configurations.

• Model 510-1100-1M (31-39″ Seat Height Range).
• Model 510-1100-2M (26-34″ Seat Height Range).
• Model 510-1100-3M (19-23″ Seat Height Range).

PLEASE NOTE: Deck plates are not supplied with 9-inch base diameter pedestal orders. If you require a 9-inch deck plate specify STIDD p/n 570-3-140.

• View Technical Drawing for 570-3-140

*fits Pompanette, Murray, Todd, and other 9-inch diameter deck plates.
